Radial Drilling Machines from China manufacturer - Jiangsu Excellent NumeriCal Control Equipment Manufacturing Co., Ltd.

Price:	6000.0~20000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZQ3032X10

Production Capacity: 80 sets per month

Delivery Date: 30-45 days

Raw Material: Steel Bar

Extra Services: Others

Certification: CE

Brand Name: EXCELLENT

Means of Transport: Ocean

Packing: Iron plaaet or paywood pack...

Power: Hydraulic

Machine Type: Roller-Bending Machine

Automation: Automatic

Material / Metal Processed: Alloy

The Radial Drilling Machine, It's construction designed elaborately, with pefect appearance and convenient maintenance .

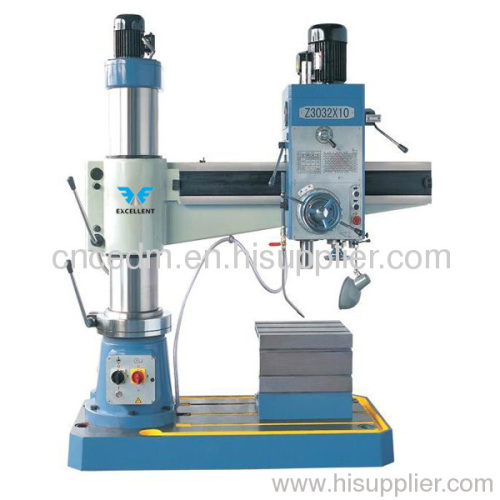

Radial Drilling Machine

Model: ZQ3032*10

Picture:

mechanical property:

*The Radial Drilling Machine, It's construction designed elaborately, with pefect appearance and convenient maintenance .
*The headstock radial arm and colummns are clamped by manual clamping mechanisms.
*It has feature of wide speed and feed range,compact operation key, reliable and enough rigidy.
*The machine has a ample rigidity and powerin drilling, counter boring, spot facing reaming,tapping, even boring when equiped with a special device. It is widely used in every depaartment of machining medium and small sizes workpieces.

Specification	Z3032X10
Max.Drilling Capacity	32mm
Spindle travel	250mm
Distance spindle axis to column surface	1000/200mm
Max.Distance spindle nose to worktable	664mm
Max.Distance spindle nose to base	1064mm
Spindle taper	MT.4
Spindle speeds range(rpm)	71-1800rpm
Spindle speeds	8
Dimension of worktable surface	450×400×400mm
Dimension of base	740×1500mm
Overall height	2354mm
Motor	2.2KW
G.W./N.W.	1500/1400kg
Ship measurement	185×90×210cm
